928814-1
Manufacturer:
TE Connectivity
Mfr.Part #:
928814-1
Datasheet:
Description:

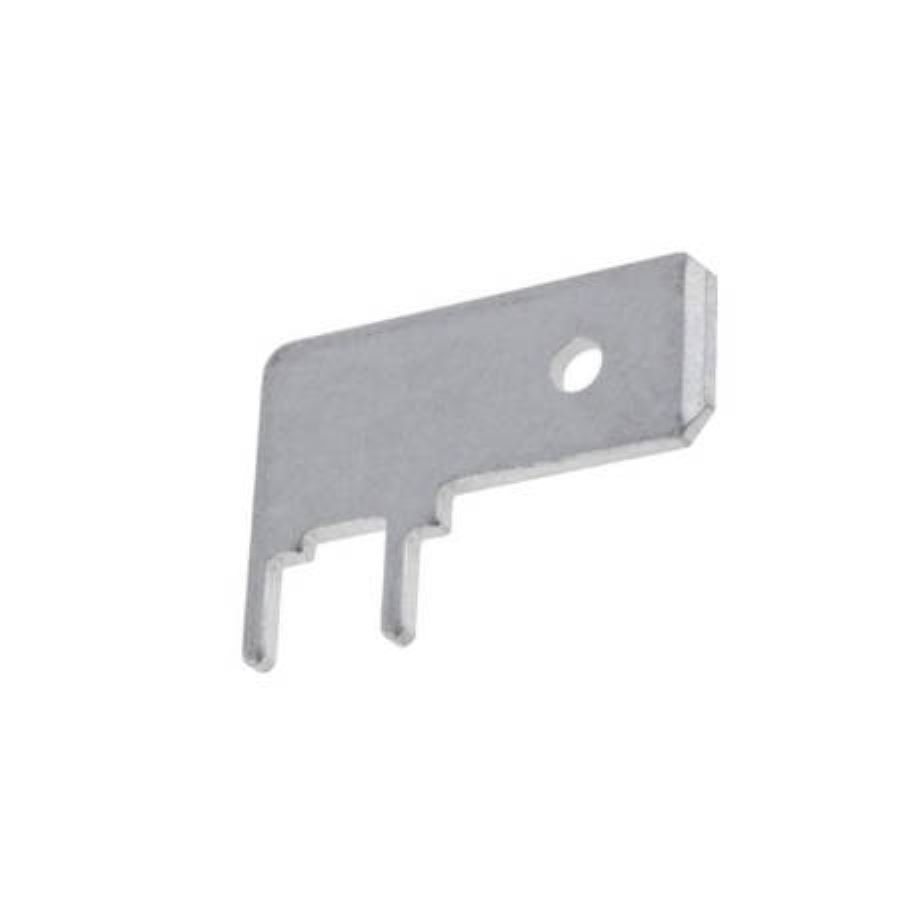

Terminals Through Hole Male
| Parameter | Value |
|---|---|
| Length | 16 mm |
| Termination | Solder |
| Height | 7.6 mm |
| Material | Brass |
| Packaging | Bulk |
| Depth | 7.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Standard |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Male |
| Body Material | Brass |
| Tab Width | 6.35 mm |
| Terminal Material | Brass |
| Hole Diameter | 1.4 mm |
| Insulation | Non-Insulated |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Tin |
| Mating Tab Width | 6.35 mm |
| Tab Length | 9.0932 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 6.35 mm x 0.8 mm |
Stock: 8637
Distributors
pcbx
pcbxUnit Price$0.14790
Ext.Price$0.14790
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14790 | $0.14790 |
| 10 | $0.12397 | $1.23970 |
| 50 | $0.11418 | $5.70900 |
| 100 | $0.10516 | $10.51600 |
| 500 | $0.09173 | $45.86500 |
| 1000 | $0.08002 | $80.02000 |
| 3000 | $0.07813 | $234.39000 |
| 5000 | $0.07628 | $381.40000 |
| 10000 | $0.07447 | $744.70000 |
